8-1393740-0 | AMP
D-Sub plug, 25 pole, standard, equipped, straight, solder pin, 8-1393740-0
Unit Price (€ / pc.)
12.2094 € *
Available: 54 pcs.
Total Price:
12.21 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2094 €
10 pcs.
11.0194 €
50 pcs.
10.1388 €
100 pcs.
9.2225 €
*incl. VAT plus shipping costs
Subject to prior sale

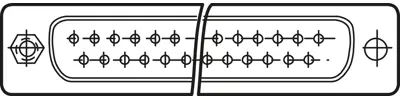

D-Sub plug, 8-1393740-0, AMP
PCB D-Sub Connector, Plug, Cable-to-Board, 25 Position, 2.74 mm Centerline, 2 Row, Size 3, Round, Standard profile, Vertical.
Features
- Unsealable
- Preloaded: Yes
- Contact base material: Phosphor-Bronze
- Insert flammability rating UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Contact connection | solder pin | |
| Attachment (rear panel) | through hole | |
| Performance level | 2 | |
| Pole image | standard | |
| Assembly | straight | |
| Type of locking | threaded insert 4-40 UNC | |
| Pin number | 25 pole | |
| Additional parts | equipped | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
