748364-1 | AMP

D-Sub plug, 15 pole, high density, unequipped, straight, crimp connection, 748364-1

Order No.: 55F6500
EAN: 4099889807806
MPN:
748364-1
0-0748364-1
Series: AMPLIMITE
748364-1 AMP D-Sub Connectors Image 1
748364-1 AMP D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.4153 € *
Available: 53 pcs.
Available in 5 Days: 42 pcs. - if ordered today
Total Price:
3.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4153 €

High-density Sub-D connector series HDP 22, bare, type TE Connectivity/AMP 0-0748../0-1658.

For applications requiring maximum contact density. Electrical and mechanical properties to MiL-C-24308; Insulator: glass fiber-reinforced polyamide GV, black, self-extinguishing to UL 94-0. Continuous current, depending upon the conductor cross-section (0.032 to 0.41 mm²): 1.5 to 5.0 A. Corresponding male or female contacts are described below (available on separate order).

For male contacts, type 0-0748../0-1658.

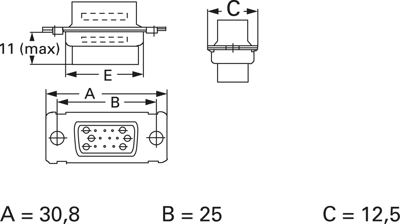

Technical attributes (type, number of poles, dimensions): 0-0748364-1, 15-pole, A 30.8, B 25.0, C 12.5 mm

Technical specifications
Type of locking through hole
Pole image high density
Attachment (rear panel) through hole
Assembly straight
Contact connection crimp connection
Pin number 15 pole
Version pin header
Additional parts unequipped
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
