747840-4 | AMP

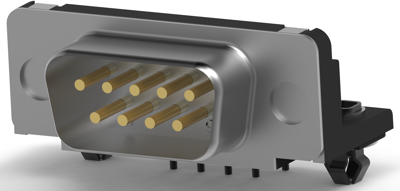

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 747840-4
Unit Price (€ / pc.)
4.0698 € *
Available in 5 Days: 1,358 pcs. - if ordered today
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.7842 €
25 pcs.
3.5343 €
50 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 747840-4, AMP
Features
- Preloaded: Yes
- Shell material: Steel
- Contact base material: Brass, Phosphor Bronze
- Unsealable
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Additional parts | equipped | |
| Pin number | 9 pole | |
| Attachment (rear panel) | through hole | |
| Grid | 2.74 mm | |
| Pole image | standard | |
| Assembly | angled | |
| Version | pin header | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | No |
