7-1393740-1 | AMP

D-Sub socket, 15 pole, standard, equipped, straight, solder pin, 7-1393740-1

Order No.: 52F1557
EAN: 4099889805666
MPN:
7-1393740-1
V42254-A2216-B215
Series: AMPLIMITE

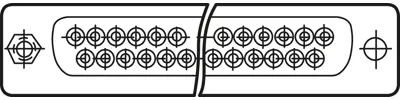

7-1393740-1 AMP D-Sub Connectors Image 1
7-1393740-1 AMP D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.3887 € *
Available: 109 pcs.
Total Price:
10.39 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3887 €
10 pcs.
9.6509 €
25 pcs.
9.0083 €
50 pcs.
8.1872 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 7-1393740-1, AMP

PCB D-Sub Connector, Receptacle, Cable-to-Board, 15 Position, 2.74 mm Centerline, 2 Row, Size 2, Round, Standard profile, Vertical.

Features

  • Unsealable
  • Contact base material: Phosphor-Bronze
  • Preloaded: Yes
  • Insert flammability rating UL 94V-0

Applications

  • For signal applications
Technical specifications
Filter Property Value
Additional parts equipped
Pin number 15 pole
Attachment (rear panel) through hole
Assembly straight
Type of locking threaded bolts 4-40 UNC
Grid 2.74 mm
Performance level 2
Pole image standard
Contact connection solder pin
Version socket header
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
