5796055-1 | AMP

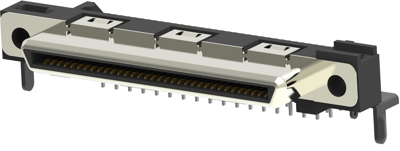

D-Sub socket, 68 pole, high density, equipped, angled, solder pin, 5796055-1
Order No.: 36P6746
EAN: 4099889785364
MPN:
5796055-1
Unit Price (€ / pc.)
25.8111 € *
Available in 5 Days: 306 pcs. - if ordered today
Total Price:
25.81 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8111 €
2 pcs.
24.1451 €
5 pcs.
22.6814 €
10 pcs.
21.0868 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5796055-1, AMP
PCB D-Sub Connector, Receptacle, Cable-to-Board, 68 Position, 0.8 mm Centerline, 4 Row, High profile, Right angle.
Features
- Unsealable
- Shielded
- Preloaded: Yes
- Insert flammability rating UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 0.8 mm | |
| Contact connection | solder pin | |
| Attachment (rear panel) | through hole | |
| Pole image | high density | |
| Assembly | angled | |
| Type of locking | threaded insert | |
| Pin number | 68 pole | |
| Additional parts | equipped | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
