5788800-2 | AMP

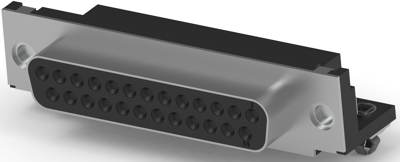

D-Sub socket, 25 pole, standard, equipped, angled, solder pin, 5788800-2
Unit Price (€ / pc.)
9.8175 € *
Available in 5 Days: 534 pcs. - if ordered today
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
9.1154 €
25 pcs.
8.5085 €
50 pcs.
7.7350 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5788800-2, AMP
HD-20 Front Metal-Shell right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Low cost front metal shell design
- Preloaded: Yes
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Type of locking | threaded insert 4-40 UNC | |
| Version | socket header | |
| Assembly | angled | |
| Additional parts | equipped | |
| Pin number | 25 pole | |
| Grid | 2.74 mm | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
