5788798-1 | AMP

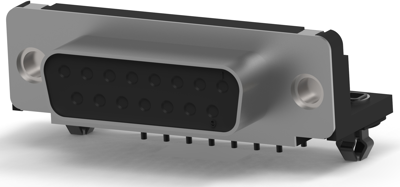

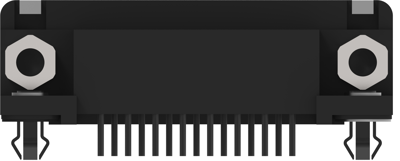

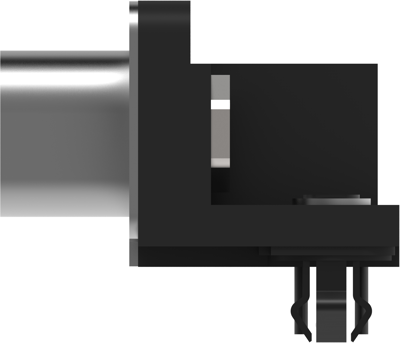

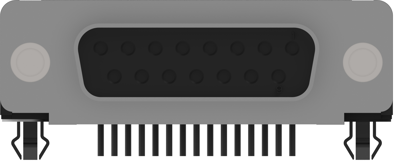

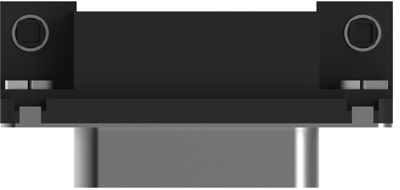

D-Sub socket, 15 pole, standard, equipped, angled, solder pin, 5788798-1
Unit Price (€ / pc.)
7.7350 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7350 €
10 pcs.
7.1876 €
25 pcs.
6.6997 €
50 pcs.
6.0928 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5788798-1, AMP
HD-20 Front Metal-Shell Right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Low cost front Metal-Shell design
- Integral boardlock feature secures connector to PC board prior to soldering
- Shell material: Steel, tin-plated
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | angled | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Version | socket header | |
| Grid | 2.74 mm | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | solder pin | |
| Pin number | 15 pole | |
| Pole image | standard |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
