5787683-1 | AMP

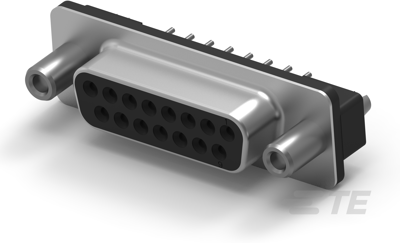

D-Sub socket, 15 pole, standard, equipped, straight, solder pin, 5787683-1
Unit Price (€ / pc.)
9.6628 € *
Standard delivery time from the manufacturer is: 21 Weeks
D-Sub socket, 5787683-1, AMP
HD-20 Front Metal-Shell straight posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
- Shell material: Steel, tin-plated
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Attachment (rear panel) | through hole | |
| Pin number | 15 pole | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | solder pin | |
| Pole image | standard | |
| Assembly | straight | |
| Grid | 2.74 mm | |
| Version | socket header | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
