5749621-7 | AMP

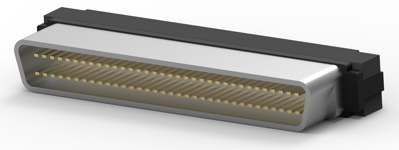

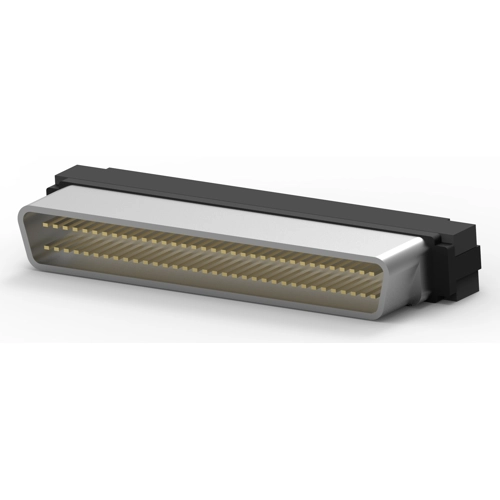

D-Sub plug, 68 pole, standard, unequipped, straight, IDC connection, 5749621-7
Unit Price (€ / pc.)
18.8377 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
18.84 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8377 €
10 pcs.
17.4930 €
25 pcs.
16.3268 €
50 pcs.
14.8393 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 5749621-7, AMP
IDC D-Sub Connector, Plug, 30 – 28 AWG solid wire size, 0.05 – 0.1 mm² solid wire size.
Features
- Excellent EMI/RFI protection
- Protect your system with shields that mate before contacts, with ground mating first and breaking last
- Board connectors compatible with standard thru-hole flow solder and surface-mount reflow solder processes
- Insert flammability rating UL 94V-0
Applications
- Industrial machinery
- Medical instrumentation
- Computer peripheral equipment
- RAID storage arrays
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 68 pole | |
| Type of locking | latch locking | |
| Contact connection | IDC connection | |
| Pole image | standard | |
| Assembly | straight | |
| Grid | 1.27 mm | |
| Version | pin header | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
