5749014-1 | AMP

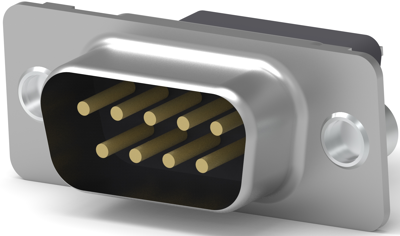

D-Sub plug, 9 pole, standard, equipped, straight, solder pin, 5749014-1
Unit Price (€ / pc.)
19.8373 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
19.84 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8373 €
10 pcs.
18.4212 €
25 pcs.
17.1955 €
50 pcs.
15.6366 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 5749014-1, AMP
PCB D-Sub Connector, Plug, Cable-to-Board, 9 Position, 2.74 mm Centerline, 2 Row, Size 1, Round, Standard profile, Vertical.
Features
- Unsealable
- Insert flammability rating UL 94V-0
- Preloaded: Yes
- Contact base material: Brass
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Version | pin header | |
| Grid | 2.74 mm | |
| Assembly | straight | |
| Type of locking | threaded insert 4-40 UNC | |
| Pin number | 9 pole | |
| Pole image | standard | |
| Attachment (rear panel) | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
