5748634-1 | AMP

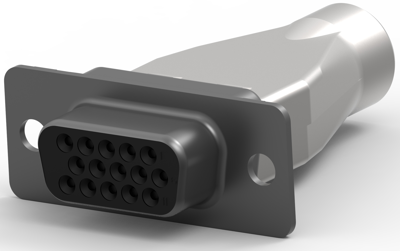

D-Sub socket, 15 pole, high density, unequipped, straight, crimp connection, 5748634-1
Unit Price (€ / pc.)
7.0924 € *
Available in 5 Days: 27,895 pcs. - if ordered today
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
10 pcs.
6.5926 €
25 pcs.
6.1523 €
50 pcs.
5.5930 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5748634-1, AMP
HDP-22 Crimp Snap-in contact connector.
Features
- Crimp Snap-in contacts allows loading of only the number of contacts being used
- Machine applied terminations assure highest production rates at lowest applied cost
- Insert flammability rating UL 94V-0
- Shell material: Steel, tin-plated
Applications
- Industrial machinery
- Medical instrumentation
- Computer peripheral equipment
- RAID storage arrays
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pole image | high density | |
| Type of locking | through hole | |
| Version | socket header | |
| Assembly | straight | |
| Additional parts | unequipped | |
| Pin number | 15 pole | |
| Grid | 2.28 mm | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
