5747845-5 | AMP
D-Sub socket, 15 pole, standard, equipped, angled, solder pin, 5747845-5
Unit Price (€ / pc.)
3.6295 € *
Available in 5 Days: 1,433 pcs. - if ordered today

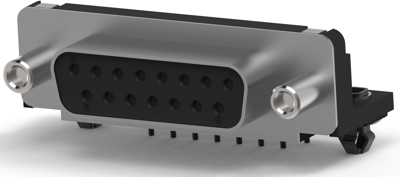

D-Sub socket, 5747845-5, AMP
HD-20 Front Metal-Shell Right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Brass
- Shell material: Steel, tin-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Assembly | angled | |
| Contact connection | solder pin | |
| Pin number | 15 pole | |
| Version | socket header | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
