5747842-4 | AMP

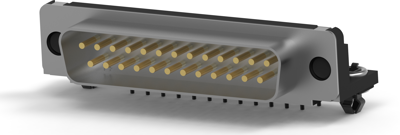

D-Sub plug, 25 pole, standard, equipped, angled, solder pin, 5747842-4
Unit Price (€ / pc.)
8.3776 € *
Available in 5 Days: 1,339 pcs. - if ordered today
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
10 pcs.
7.7826 €
25 pcs.
7.2590 €
50 pcs.
6.6045 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 5747842-4, AMP
HD-20 Front Metal-Shell Right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Brass
- Shell material: Steel, tin-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | angled | |
| Version | pin header | |
| Pole image | standard | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | solder pin | |
| Pin number | 25 pole | |
| Additional parts | equipped | |
| Attachment (rear panel) | through hole | |
| Grid | 2.77 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
