5747461-5 | AMP

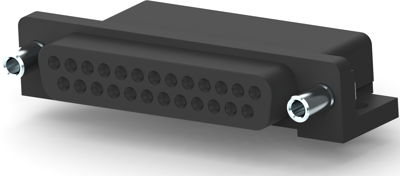

D-Sub socket, 25 pole, standard, equipped, angled, solder pin, 5747461-5
Unit Price (€ / pc.)
26.7393 € *
Available in 5 Days: 631 pcs. - if ordered today
Total Price:
26.74 € *
Price list
Quantity
Price per unit*
1 pcs.
26.7393 €
5 pcs.
25.3589 €
10 pcs.
23.7286 €
25 pcs.
21.6342 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5747461-5, AMP
HD-20 All-Plastic Right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Attachment (rear panel) | through hole | |
| Pole image | standard | |
| Version | socket header | |
| Contact connection | solder pin | |
| Additional parts | equipped | |
| Pin number | 25 pole | |
| Grid | 2.74 mm | |
| Type of locking | threaded bolts 4-40 UNC | |
| Assembly | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
