5747301-7 | AMP

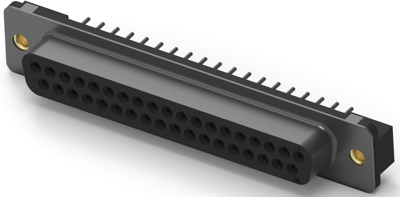

D-Sub socket, 37 pole, standard, equipped, straight, solder pin, 5747301-7
Unit Price (€ / pc.)
32.1062 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
32.11 € *
Price list
Quantity
Price per unit*
1 pcs.
32.1062 €
5 pcs.
30.4521 €
10 pcs.
28.4886 €
25 pcs.
25.9658 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5747301-7, AMP
HD-20 Front Metal-Shell straight posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connector to PC board prior to soldering
- Preloaded: Yes
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.77 mm | |
| Version | socket header | |
| Pole image | standard | |
| Contact connection | solder pin | |
| Type of locking | threaded insert 4-40 UNC | |
| Additional parts | equipped | |
| Pin number | 37 pole | |
| Attachment (rear panel) | through hole | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
