5747193-1 | AMP

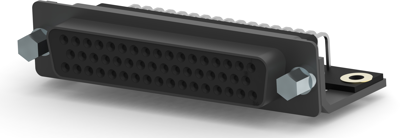

D-Sub socket, 50 pole, high density, equipped, angled, solder pin, 5747193-1
Order No.: 36P9279
EAN: 4099889787207
MPN:
5747193-1
Unit Price (€ / pc.)
36.4973 € *
Standard delivery time from the manufacturer is: 23 Weeks
D-Sub socket, 5747193-1, AMP
HD-20 Full Metal-Shell Right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
- Shell material: Steel, tin-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded bolts 4-40 UNC | |
| Pole image | high density | |
| Attachment (rear panel) | through hole | |
| Assembly | angled | |
| Version | socket header | |
| Contact connection | solder pin | |
| Pin number | 50 pole | |
| Grid | 2.77 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
