5747150-2 | AMP

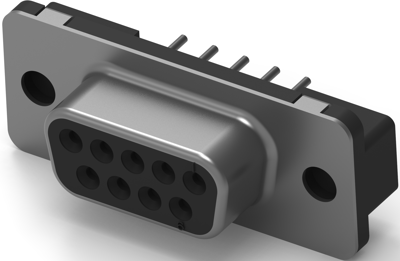

D-Sub socket, 9 pole, standard, equipped, straight, solder pin, 5747150-2
Unit Price (€ / pc.)
7.2471 € *
Available in 5 Days: 2,475 pcs. - if ordered today
D-Sub socket, 5747150-2, AMP
HD-20 Front Metal-Shell straight posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connector to PC board prior to soldering
- Preloaded: Yes
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | solder pin | |
| Pin number | 9 pole | |
| Grid | 2.74 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
