5745454-2 | AMP

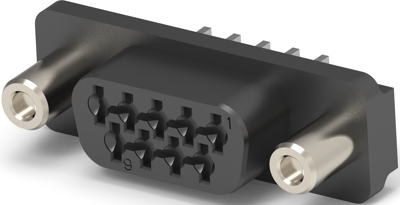

D-Sub socket, 9 pole, standard, equipped, straight, press-in connection, 5745454-2
Order No.: 36P6165
EAN: 4099889785227
MPN:
5745454-2
Unit Price (€ / pc.)
10.4125 € *
Available in 5 Days: 1,554 pcs. - if ordered today
Total Price:
208.25 € *
Price list
Quantity
Price per unit*
20 pcs.
10.4125 €
50 pcs.
10.2102 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5745454-2, AMP
HD-20 All-plastic straight posted connector with ACTION PIN contacts.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Contact connection | press-in connection | |
| Attachment (rear panel) | through hole | |
| Pole image | standard | |
| Assembly | straight | |
| Type of locking | threaded bolts 4-40 UNC | |
| Pin number | 9 pole | |
| Additional parts | equipped | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
