5745396-2 | AMP

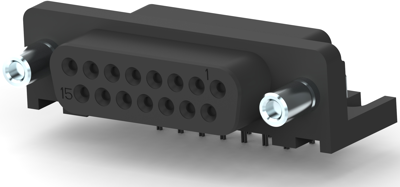

D-Sub socket, 15 pole, standard, equipped, angled, solder pin, 5745396-2
Unit Price (€ / pc.)
16.5172 € *
Available in 5 Days: 926 pcs. - if ordered today
Total Price:
16.52 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5172 €
10 pcs.
15.3391 €
25 pcs.
14.3157 €
50 pcs.
13.0186 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5745396-2, AMP
HD-20 All-plastic right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Attachment (rear panel) | through hole | |
| Pole image | standard | |
| Version | socket header | |
| Contact connection | solder pin | |
| Additional parts | equipped | |
| Pin number | 15 pole | |
| Grid | 2.74 mm | |
| Type of locking | threaded bolts 4-40 UNC | |
| Assembly | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
