5745395-2 | AMP

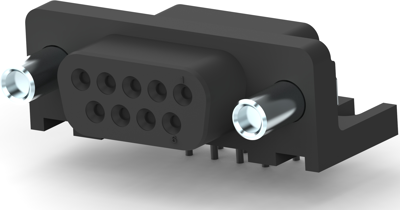

D-Sub socket, 9 pole, standard, equipped, angled, solder pin, 5745395-2
Unit Price (€ / pc.)
5.95 € *
Standard delivery time from the manufacturer is: 28 Weeks
D-Sub socket, 5745395-2, AMP
HD-20 All-plastic right-angle posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 9 pole | |
| Pole image | standard | |
| Type of locking | threaded bolts 4-40 UNC | |
| Attachment (rear panel) | through hole | |
| Assembly | angled | |
| Contact connection | solder pin | |
| Version | socket header | |
| Grid | 2.74 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
