5745189-1 | AMP

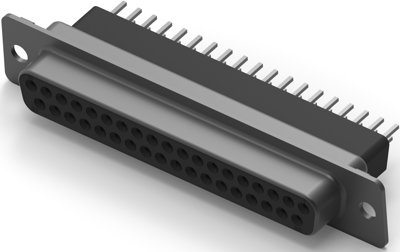

D-Sub socket, 37 pole, high density, equipped, straight, solder pin, 5745189-1
Unit Price (€ / pc.)
18.8139 € *
Available in 5 Days: 1,129 pcs. - if ordered today
D-Sub socket, 5745189-1, AMP
HD-20 Full Metal-Shell straight posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
- Shell material: Steel, tin-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Pin number | 37 pole | |
| Pole image | high density | |
| Type of locking | through hole | |
| Additional parts | equipped | |
| Grid | 2.74 mm | |
| Version | socket header | |
| Assembly | straight | |
| Attachment (rear panel) | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
