5745187-7 | AMP

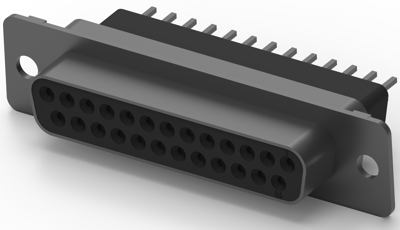

D-Sub socket, 25 pole, high density, equipped, straight, solder pin, 5745187-7
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.3105 € *
Available in 12 Days: 260 pcs. - if ordered today
Total Price:
27.31 € *
Price list
Quantity
Price per unit*
1 pcs.
27.3105 €
10 pcs.
25.6088 €
25 pcs.
24.0975 €
50 pcs.
22.7647 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5745187-7, AMP
HD-20 Full Metal-Shell straight posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connectors to PC board prior to soldering
- Contact base material: Phosphor-Bronze
- Shell material: Steel, tin-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 25 pole | |
| Version | socket header | |
| Contact connection | solder pin | |
| Grid | 2.74 mm | |
| Pole image | high density | |
| Additional parts | equipped | |
| Assembly | straight | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
