5745072-2 | AMP

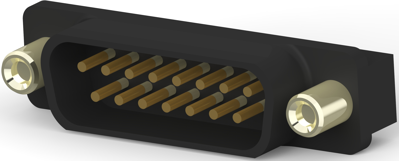

D-Sub plug, 15 pole, standard, equipped, straight, solder pin, 5745072-2
Unit Price (€ / pc.)
10.6505 € *
Available in 5 Days: 1,234 pcs. - if ordered today
Total Price:
10.65 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6505 €
5 pcs.
10.0912 €
10 pcs.
9.4486 €
25 pcs.
8.6156 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 5745072-2, AMP
HD-20 All-Plastic straight posted connector.
Features
- Flame retardant thermoplastic housing material
- Integral boardlock feature secures connector to PC board prior to soldering
- Preloaded: Yes
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Contact connection | solder pin | |
| Attachment (rear panel) | through hole | |
| Pole image | standard | |
| Assembly | straight | |
| Type of locking | threaded bolts 4-40 UNC | |
| Pin number | 15 pole | |
| Additional parts | equipped | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
