5745036-2 | AMP

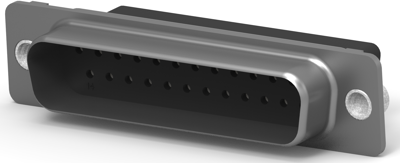

D-Sub plug, 25 pole, standard, equipped, straight, crimp connection, 5745036-2
Unit Price (€ / pc.)
5.7953 € *
Standard delivery time from the manufacturer is: 6 Weeks
D-Sub plug, 5745036-2, AMP
HDP-20 Crimp Snap-in contact connector.
Features
- Low cost, commercial version of military equipment
- High performance
- Machine applied terminations assure highest production rates at lowest applied cost
- Shell material: Steel, tin-plated
Applications
- Industrial machinery
- Medical instrumentation
- Computer peripheral equipment
- RAID storage arrays
- On-machine industrial communications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 25 pole | |
| Pole image | standard | |
| Type of locking | threaded insert 4-40 UNC | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Contact connection | crimp connection | |
| Version | pin header | |
| Grid | 2.74 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
