5556622-1 | AMP

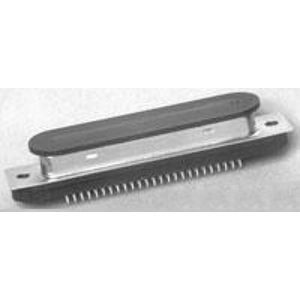

D-Sub socket, 64 pole, standard, equipped, straight, press-in connection, 5556622-1
Order No.: 37P1635
EAN: 4099889787351
MPN:
5556622-1
Unit Price (€ / pc.)
17.8143 € *
Standard delivery time from the manufacturer is: 14 Weeks
D-Sub socket, 5556622-1, AMP
PCB D-Sub Connector, Receptacle, Cable-to-Board, 64 Position, 2.16 mm Centerline, 2 Row, Standard profile, Vertical, PCB mount retention.
Features
- Unsealable
- Shielded
- Preloaded: Yes
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | press-in connection | |
| Pin number | 64 pole | |
| Grid | 2.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
