5552745-1 | AMP

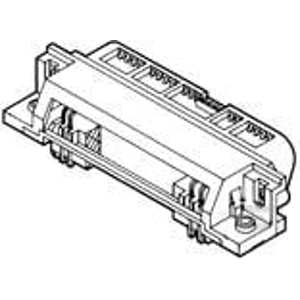

D-Sub connector, 64 pole, standard, angled, solder pin, 5552745-1
Order No.: 71P9943
EAN: 4099891356491
MPN:
5552745-1
Unit Price (€ / pc.)
20.6465 € *
Available in 5 Days: 263 pcs. - if ordered today
Total Price:
20.65 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6465 €
10 pcs.
19.1709 €
25 pcs.
17.8857 €
50 pcs.
16.2673 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector, 5552745-1, AMP
PCB D-Sub connector, Plug, Cable-to-Board, 64 Position, 2.16 mm Centerline, 2 Row, Standard profile, Right angle, PCB Mount retention.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.16 mm | |
| Pin number | 64 pole | |
| Pole image | standard | |
| Version | pin header | |
| Assembly | angled | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | solder pin | |
| Attachment (rear panel) | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
