5552241-1 | AMP
D-Sub connector, 36 pole, standard, straight, solder pin, 5552241-1
Order No.: 71P9940
EAN: 4099891356439
MPN:
5552241-1
Unit Price (€ / pc.)
13.7088 € *
Available in 5 Days: 804 pcs. - if ordered today
Total Price:
13.71 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7088 €
10 pcs.
12.6140 €
50 pcs.
11.3526 €
100 pcs.
10.2221 €
*incl. VAT plus shipping costs
Subject to prior sale

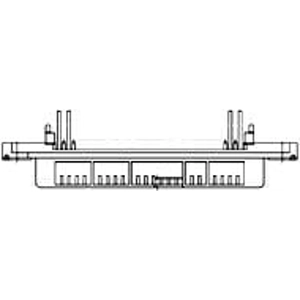

D-Sub connector, 5552241-1, AMP
PCB D-Sub connector, Receptacle, Cable-to-Board, 36 Position, 2.16 mm Centerline, 2 Row, Standard profile, Vertical, Mating retention.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pole image | standard | |
| Grid | 2.16 mm | |
| Version | socket header | |
| Contact connection | solder pin | |
| Type of locking | threaded insert | |
| Assembly | straight | |
| Pin number | 36 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
