5552212-1 | AMP

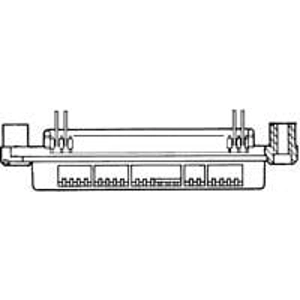

D-Sub connector, 14 pole, standard, straight, solder pin, 5552212-1
Order No.: 71P9939
EAN: 4099891356422
MPN:
5552212-1
Unit Price (€ / pc.)
11.6977 € *
Available in 5 Days: 955 pcs. - if ordered today
Total Price:
11.70 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6977 €
10 pcs.
10.8647 €
25 pcs.
10.1388 €
50 pcs.
9.2106 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub connector, 5552212-1, AMP
PCB D-Sub connector, Receptacle, Cable-to-Board, 14 Position, 2.16 mm Centerline, 2 Row, Standard profile, Vertical, Mating retention.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.16 mm | |
| Pin number | 14 pole | |
| Pole image | standard | |
| Version | socket header | |
| Assembly | straight | |
| Type of locking | threaded insert | |
| Contact connection | solder pin | |
| Attachment (rear panel) | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
