552285-1 | AMP
D-Sub plug, 64 pole, standard, equipped, straight, IDC connection, 552285-1
Order No.: 37P2914
EAN: 4099889787481
MPN:
552285-1
Unit Price (€ / pc.)
9.7461 € *
Available in 5 Days: 1,142 pcs. - if ordered today
Total Price:
9.75 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7461 €
10 pcs.
9.0559 €
25 pcs.
8.4490 €
50 pcs.
7.6755 €
*incl. VAT plus shipping costs
Subject to prior sale

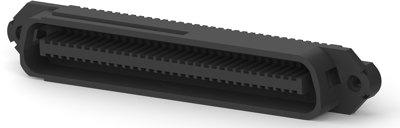

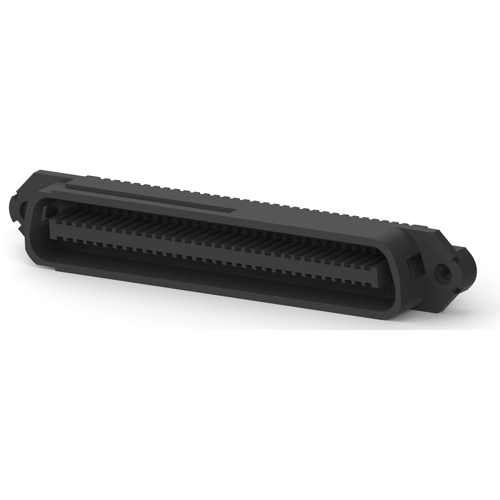

D-Sub plug, 552285-1, AMP
IDC D-Sub Connector, Plug, 26 – 24 AWG solid wire size, 0.13 – 0.32 mm² , 24 AWG stranded wire.
Features
- Unsealable
- Unshielded
- Contact base material: Copper alloy
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | straight | |
| Version | pin header | |
| Pole image | standard | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | IDC connection | |
| Pin number | 64 pole | |
| Additional parts | equipped | |
| Attachment (rear panel) | through hole | |
| Grid | 2.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
