5229913-1 | AMP

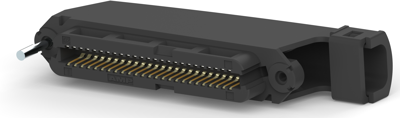

D-Sub socket, 50 pole, standard, equipped, straight, IDC connection, 5229913-1
Order No.: 37P2937
EAN: 4099889787580
MPN:
5229913-1
Unit Price (€ / pc.)
14.2800 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
14.28 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2800 €
10 pcs.
13.2566 €
25 pcs.
12.3760 €
50 pcs.
11.2455 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 5229913-1, AMP
IDC D-Sub Connector, Receptacle, 26 – 24 AWG solid wire size, 0.13 – 0.32 mm² solid wire size, 24 AWG stranded wire.
Features
- Unsealable
- Shielded
- Contact base material: Copper alloy
- Insert flammability rating: UL 94V-0
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.16 mm | |
| Version | socket header | |
| Pole image | standard | |
| Contact connection | IDC connection | |
| Type of locking | threaded insert 4-40 UNC | |
| Additional parts | equipped | |
| Pin number | 50 pole | |
| Attachment (rear panel) | through hole | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
