5205737-7 | AMP

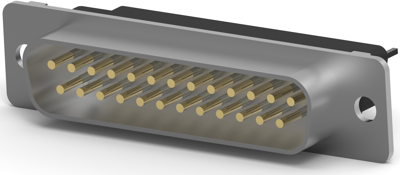

D-Sub plug, 25 pole, standard, equipped, straight, solder pin, 5205737-7
Unit Price (€ / pc.)
22.1102 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
22.11 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1102 €
10 pcs.
20.5275 €
25 pcs.
19.1590 €
50 pcs.
17.4216 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 5205737-7, AMP
PCB D-Sub Connector, Plug, Board-to-Board, 25 Position, 2.74 mm Centerline, 2 Row, Size 3, Square, Standard profile.
Features
- Unsealable
- Preloaded: Yes
- Insert flammability rating UL 94V-0
- Contact base material: Brass
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.74 mm | |
| Pin number | 25 pole | |
| Pole image | standard | |
| Version | pin header | |
| Assembly | straight | |
| Additional parts | equipped | |
| Type of locking | through hole | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
