5174683-8 | AMP

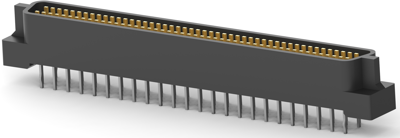

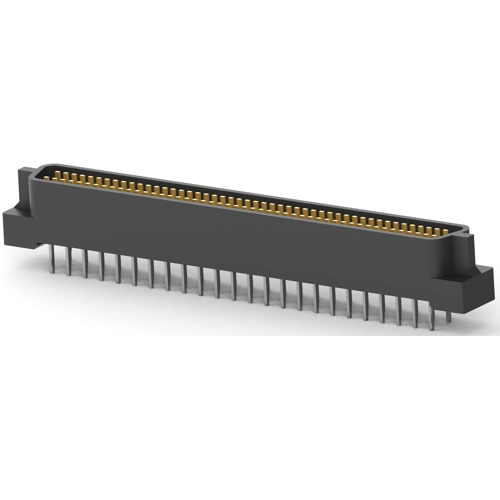

D-Sub plug, 96 pole, standard, equipped, straight, solder pin, 5174683-8
Order No.: 36P4586
EAN: 4099889783803
MPN:
5174683-8
Unit Price (€ / pc.)
7.8897 € *
Standard delivery time from the manufacturer is: 19 Weeks
D-Sub plug, 5174683-8, AMP
PCB D-Sub Connector, Plug, Cable-to-Board, 96 Position, 1.27 mm Centerline, 4 Row, Rectangular, Standard profile.
Features
- Insert flammability rating UL 94V-0
- Unshielded
- Contact base material: Phosphor-Bronze
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Contact connection | solder pin | |
| Pole image | standard | |
| Assembly | straight | |
| Type of locking | through hole | |
| Pin number | 96 pole | |
| Additional parts | equipped | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SE |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
