5-827189-1 | AMP

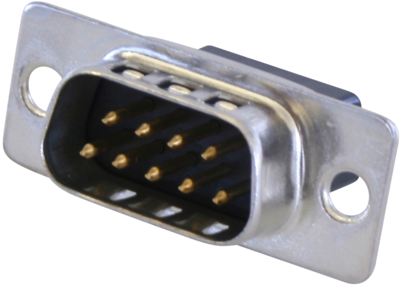

D-Sub plug, 9 pole, standard, equipped, straight, solder pin, 5-827189-1
No longer available from manufacturer
Unit Price (€ / pc.)
5.4502 € *
Available: 21 pcs.
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
5.0694 €
*incl. VAT plus shipping costs
Subject to prior sale
HDP 20 D-Sub male connector, type TE Connectivity/AMP 5-082.
With 0.63 x 0.63 mm straight square pin terminals. Made of nickel-plated brass with selective gold plating. For PCB mounting or wire-wrap connection. Housing made of galvanized steel, with grounding spring in the insertion area of the metal collar for safe ground connection; Insulator: glass fiber-reinforced nylon, self-extinguishing to UL 94 V-0, black. Rated current: 7.5 A.
Technical attributes (type, number of poles): 5-0827189-1, 9-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 9 pole | |
| Pole image | standard | |
| Type of locking | through hole | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Contact connection | solder pin | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
