5-747913-2 | AMP

D-Sub socket, 25 pole, standard, equipped, straight, solder cup, 5-747913-2

Order No.: 55F431
EAN: 4099889806823
MPN:
5-747913-2
5-0747913-2
Series: AMPLIMITE

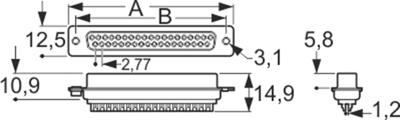

5-747913-2 AMP D-Sub Connectors Image 1
5-747913-2 AMP D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Next delivery: 46 pcs. on 2025-08-08
Available in 5 Days: 4,579 pcs. - if ordered today
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.4621 €
25 pcs.
5.0932 €
50 pcs.
4.6291 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 5-747913-2, AMP

HD-20 Solder cup connector.

Features

  • Preloaded duplex-plated solder cup contacts
  • Anti-solderwicking contact design
  • Crimped shield termination for low impedance
  • Intermateable with other subminiature D connectors

Applications

  • Industrial machinery
  • Medical instrumentation
  • Computer peripheral equipment
  • RAID storage arrays
  • On-machine industrial communications
Technical specifications
Filter Property Value
Pin number 25 pole
Additional parts equipped
Attachment (rear panel) through hole
Version socket header
Assembly straight
Type of locking through hole
Pole image standard
Grid 2.77 mm
Contact connection solder cup
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
