5-445705-4 | AMP

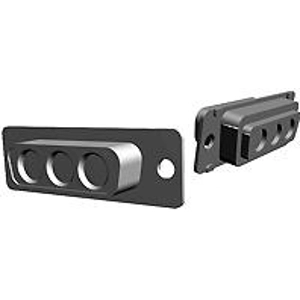

D-Sub socket, 3 pole, standard, equipped, straight, crimp connection, 5-445705-4
Order No.: 34P1499
EAN: 4099889782981
MPN:
5-445705-4
Unit Price (€ / pc.)
6.9377 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
131.82 € *
Price list
Quantity
Price per unit*
19 pcs.
6.9377 €
100 pcs.
6.5093 €
350 pcs.
6.2356 €
900 pcs.
6.0095 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 5-445705-4, TE Connectivity
Product Type: Connector, Connector and Housing Type: Receptacle, Connector System: Cable-to-Cable, D-Sub Shell Size: 2, Sealable: No, Number of Positions: 3, Power/Signal/Coax Combination: Yes, Box Mount D-Sub Connector Insert Arrangement: 3C3, Non-Magnetic: No, Contact Type: Socket, Contact Type: Socket, D-Sub Contact Size: 8, Contact Current Rating (Max): 32 A, Mounting Hole Diameter: 3.05 mm, Centerline (Pitch): 2.77 mm, Operating Temperature Range: -55 – 125 °C, ULTRA-LITE Connector: No, Circuit Application: Power & Signal, NASA Qualification: No., Comment: Cable clamp/strain relief hardware cannot be used with these arrangements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 3 pole | |
| Pole image | standard | |
| Assembly | straight | |
| Contact connection | crimp connection | |
| Version | socket header | |
| Grid | 2.77 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
