3-338310-2 | AMP

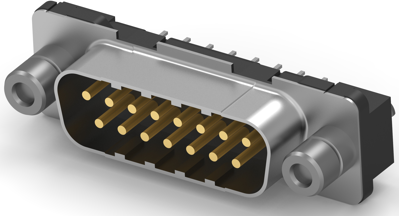

D-Sub plug, 15 pole, standard, equipped, straight, solder pin, 3-338310-2
Unit Price (€ / pc.)
8.6989 € *
Available in 5 Days: 1,216 pcs. - if ordered today
Total Price:
8.70 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6989 €
10 pcs.
8.0801 €
25 pcs.
7.5327 €
50 pcs.
6.8544 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 3-338310-2, AMP
PCB D-Sub Connector, Plug, Cable-to-Board, 15 Position, 2.74 mm Centerline, 2 Row, Size 2, Round, Standard profile.
Features
- Unsealable
- Unshielded
- Preloaded: Yes
- Performance level: 2
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Attachment (rear panel) | through hole | |
| Pole image | standard | |
| Version | pin header | |
| Contact connection | solder pin | |
| Additional parts | equipped | |
| Pin number | 15 pole | |
| Grid | 2.74 mm | |
| Type of locking | threaded bolts 4-40 UNC | |
| Performance level | 2 | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
