3-106507-2 | AMP

D-Sub socket, 25 pole, standard, equipped, angled, solder pin, 3-106507-2

Order No.: 55F4764
EAN: 4099889806977
MPN:
3-106507-2
3-0106507-2
Series: AMPLIMITE

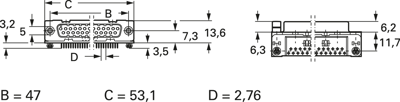

3-106507-2 AMP D-Sub Connectors Image 1
3-106507-2 AMP D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.0686 € *
Next delivery: 39 pcs. on 2025-07-11
Available in 5 Days: 699 pcs. - if ordered today
Total Price:
7.07 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0686 €
10 pcs.
6.5688 €
50 pcs.
6.0452 €
100 pcs.
5.5097 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 3-106507-2, AMP

PCB D-Sub Connector, Receptacle, Cable-to-Board, 25 Position, 2.77 mm Centerline, 2 Row, Size 3, Round, Standard profile.

Features

  • Flame retardant thermoplastic housing material
  • Integral boardlock feature secures connectors to PC board prior to soldering
  • Contact base material: Phosphor-Bronze
  • Shell material: Steel, tin-plated
Technical specifications
Filter Property Value
Performance level 2
Type of locking threaded insert 4-40 UNC
Grid 2.77 mm
Pole image standard
Contact connection solder pin
Version socket header
Pin number 25 pole
Additional parts equipped
Attachment (rear panel) through hole
Assembly angled
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
