229975-1 | AMP

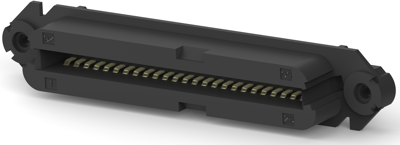

D-Sub socket, 50 pole, standard, equipped, straight, IDC connection, 229975-1
Order No.: 37P2927
EAN: 4099889787528
MPN:
229975-1
Unit Price (€ / pc.)
5.8072 € *
Available in 5 Days: 2,430 pcs. - if ordered today
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
10 pcs.
5.4026 €
25 pcs.
5.0337 €
50 pcs.
4.5815 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 229975-1, AMP
CHAMP docking connector, IDC D-Sub Connector, Receptacle, Cable-to-Cable / Cable-to-Panel, 14 / 24 / 36 Position, 2.16 mm Centerline.
Features
- Unsealable
- Contact base material: Copper alloy
- Unshielded
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | IDC connection | |
| Pin number | 50 pole | |
| Grid | 2.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
