229974-4 | AMP

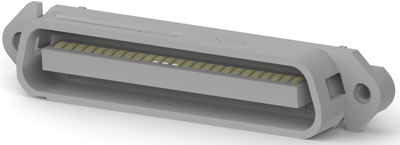

D-Sub plug, 50 pole, standard, equipped, straight, IDC connection, 229974-4
Order No.: 37P2907
EAN: 4099889787436
MPN:
229974-4
Unit Price (€ / pc.)
7.5327 € *
Available in 5 Days: 400 pcs. - if ordered today
Total Price:
7.53 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5327 €
5 pcs.
7.1400 €
10 pcs.
6.6759 €
25 pcs.
6.0928 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 229974-4, AMP
IDC D-Sub Connector, Plug, 26 – 24 AWG Solid Wire Size, 0.13 – 0.32 mm² Solid Wire Size, 24 AWG Stranded Wire.
Features
- Unsealable
- Contact base material: Copper alloy
- Unshielded
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | pin header | |
| Contact connection | IDC connection | |
| Pin number | 50 pole | |
| Grid | 2.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
