2157480-3 | AMP

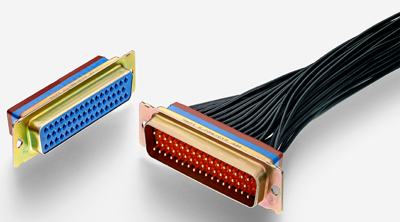

D-Sub plug, 25 pole, standard, equipped, straight, crimp connection, 2157480-3
Order No.: 34P1564
EAN: 4099889783384
MPN:
2157480-3
Unit Price (€ / pc.)
108.0877 € *
Standard delivery time from the manufacturer is: 17 Weeks
Crimp D-Sub Connector, 2157480-3, AMP
Shell Type: Metal, Connector and Housing Type: Plug, Connector System: Cable-to-Cable, D-Sub Shell Size: 3, Sealable: Yes, Number of Positions: 25, Shell Material: Carbon Steel, D-Sub Contact Size: 20, Contact Current Rating (Max): 7.5 A, Termination Method to Wire & Cable: Crimp, Mating Retention: Without, Connector Mounting Type: Panel Mount, Housing Color: Black, Centerline (Pitch): 2.77 mm, Operating Temperature Range: -55 – 125 °C, For Use With: Crimp Snap-in, Shielded: No, Circuit Application: Signal, Insert Flammability Rating: V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.77 mm | |
| Contact connection | crimp connection | |
| Pole image | standard | |
| Assembly | straight | |
| Pin number | 25 pole | |
| Additional parts | equipped | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Cadmium |
| RoHS conform | Yes |
| SVHC free | No |
