215711-1 | AMP
D-Sub plug, 9 pole, standard, unequipped, straight, crimp connection, 215711-1
Unit Price (€ / pc.)
4.5339 € *
Available in 5 Days: 436 pcs. - if ordered today
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.2126 €
25 pcs.
3.9270 €
50 pcs.
3.5700 €
*incl. VAT plus shipping costs
Subject to prior sale
Bare sub-D connector, type TE Connectivity/AMP HDP-20.

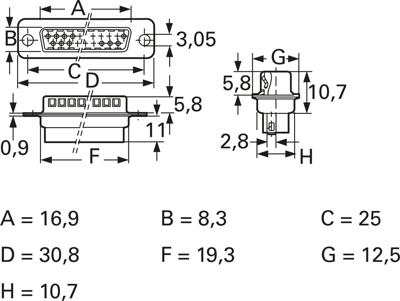

For insertion of male or female contacts. Tinned steel housing; Insulator: black glass fiber-reinforced nylon compliant with UL 94 V-0. Rated current: 7.5 A. Dimension B: 9 to 37-pole/50-pole 8.3/11.1 mm. Dimension G: 9 to 37-pole/50-pole 12.5/15.4 mm. Dimension H: 9 to 37-pole/50-pole 10.7/13.5 mm.
Male connector elements with grounding spring and 2.8 mm grounding terminal, type 0-0215.
Technical attributes (type, number of poles, dimensions A, C, D): 711-1, 9-pole, A 16.9, C 25.0, D 30.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | straight | |
| Pin number | 9 pole | |
| Version | pin header | |
| Contact connection | crimp connection | |
| Grid | 2.74 mm | |
| Type of locking | through hole | |
| Attachment (rear panel) | through hole | |
| Pole image | standard | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
