207464-2 | AMP

D-Sub plug, 25 pole, standard, unequipped, straight, crimp connection, 207464-2

Order No.: 55F4034
EAN: 4099889806588
MPN:
207464-2
0-0207464-2
Series: AMPLIMITE

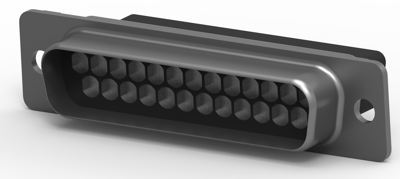

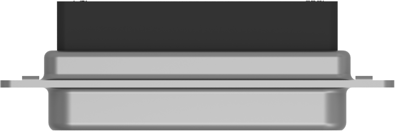

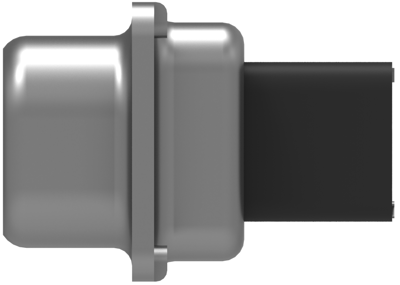

207464-2 AMP D-Sub Connectors Image 1
207464-2 AMP D-Sub Connectors Image 2
207464-2 AMP D-Sub Connectors Image 3
207464-2 AMP D-Sub Connectors Image 4
207464-2 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.4042 € *
Available: 199 pcs.
Available in 5 Days: 265 pcs. - if ordered today
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
25 pcs.
1.2019 €
100 pcs.
1.1067 €
*incl. VAT plus shipping costs
Subject to prior sale

Male Header, 207464-2, AMP

Shell Type: Full Metal Shell, Connector and Housing Type: Plug, Connector System: Cable-to-Cable, D-Sub Shell Size: 3, Sealable: No, Number of Positions: 25, Shell Material: Steel, D-Sub Contact Size: 20, Mating Retention: With, Mating Retention Type: Mounting Holes, Centerline (Pitch): 2.74 mm, Operating Temperature Range: -55 to 105 °C, For Use With: Crimp Snap-in, Shielded: Yes, Circuit Application: Signal, UL Flammability Rating: UL 94V-0., Comment: Plugs accept size 20 DF pin contacts.

Technical Data

  • Assembly: Cable connection
  • Pin number: 25-pole
  • Pole image: Standard
Technical specifications
Filter Property Value
Attachment (rear panel) through hole
Pin number 25 pole
Type of locking through hole
Contact connection crimp connection
Pole image standard
Assembly straight
Grid 2.74 mm
Version pin header
Additional parts unequipped
Logistics
Property Value
Customs tariff number 85472000
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
