205206-3 | AMP

D-Sub plug, 15 pole, standard, unequipped, straight, crimp connection, 205206-3

Order No.: 55F4045
EAN: 4099889806649
MPN:
205206-3
0-0205206-3
Series: AMPLIMITE

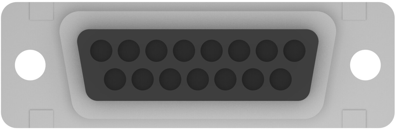

205206-3 AMP D-Sub Connectors Image 1

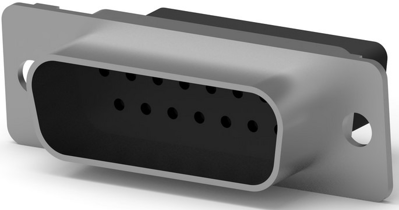

205206-3 AMP D-Sub Connectors Image 2

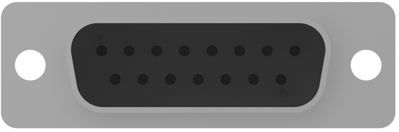

205206-3 AMP D-Sub Connectors Image 3

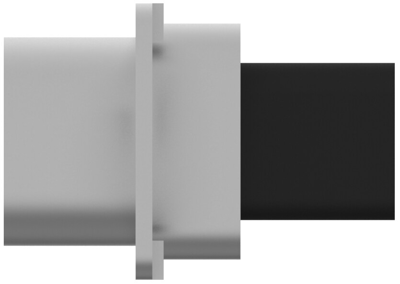

205206-3 AMP D-Sub Connectors Image 4

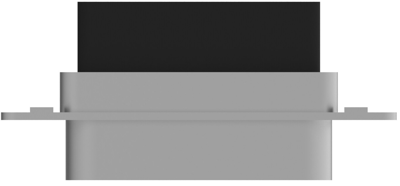

205206-3 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.1658 € *
Available: 293 pcs.
Available in 5 Days: 812 pcs. - if ordered today
Total Price:
10.83 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1658 €
10 pcs.
2.0111 €
25 pcs.
1.8683 €
50 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

Male Header, 205206-3, AMP

Shell Type: Full Metal Shell, Connector and Housing Type: Plug, Connector System: Cable-to-Cable, D-Sub Shell Size: 2, Sealable: No, Number of Positions: 15, Shell Material: Steel, D-Sub Contact Size: 20, Mating Retention: With, Mating Retention Type: Mounting Holes, Centerline (Pitch): 2.74 mm, Operating Temperature Range: -55 to 105 °C, For Use With: Crimp Snap-in, Shielded: Yes, Circuit Application: Signal, UL Flammability Rating: UL 94V-0., Comment: Plugs accept size 20 DF pin contacts.

Technical Data

  • Assembly: Cable connection
  • Pin number: 15-pole
  • Pole image: Standard
Technical specifications
Filter Property Value
Grid 2.74 mm
Version pin header
Pole image standard
Contact connection crimp connection
Type of locking through hole
Additional parts unequipped
Pin number 15 pole
Attachment (rear panel) through hole
Assembly straight
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
