205205-2 | AMP

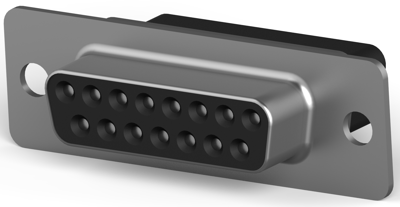

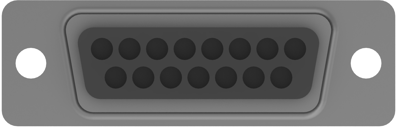

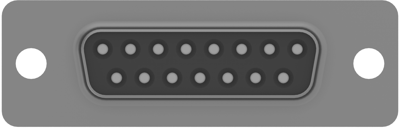

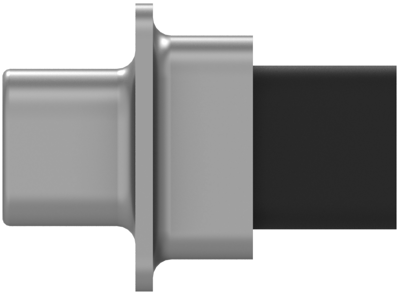

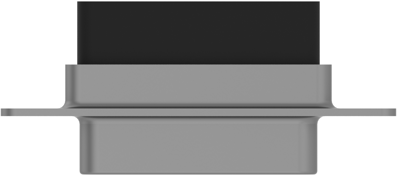

D-Sub socket, 15 pole, standard, unequipped, straight, crimp connection, 205205-2
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.3923 €
50 pcs.
1.2495 €
100 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket Header, 205205-2, AMP
Shell Type: Full Metal Shell, Connector and Housing Type: Receptacle, Connector System: Cable-to-Cable, D-Sub Shell Size: 2, Sealable: No, Number of Positions: 15, Shell Material: Steel, D-Sub Contact Size: 20, Mating Retention: With, Mating Retention Type: Mounting Holes, Centerline (Pitch): 2.74 mm, Operating Temperature Range: -55 to 105 °C, For Use With: Crimp Snap-in, Shielded: Yes, Circuit Application: Signal, UL Flammability Rating: UL 94V-0., Comment: Receptacles accept size 20 DF socket contacts.
Technical Data
- Assembly: Cable connection
- Pin number: 15-pole
- Pole image: Standard
Technical specifications
| Type of locking | through hole | |
| Pole image | standard | |
| Assembly | straight | |
| Grid | 2.74 mm | |
| Contact connection | crimp connection | |
| Pin number | 15 pole | |
| Version | socket header | |
| Additional parts | unequipped |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
