2-552001-1 | AMP

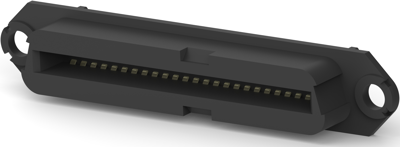

D-Sub socket, 50 pole, standard, equipped, straight, IDC connection, 2-552001-1
Order No.: 37P2921
EAN: 4099889787504
MPN:
2-552001-1
Unit Price (€ / pc.)
6.8901 € *
Available in 5 Days: 19,299 pcs. - if ordered today
Total Price:
6.89 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8901 €
10 pcs.
6.4022 €
25 pcs.
5.9738 €
50 pcs.
5.4264 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 2-552001-1, AMP
IDC D-Sub Connector, Receptacle, 26 – 24 AWG solid wire size, 0.13 – 0.32 mm² solid wire size, 24 AWG stranded wire.
Features
- Unsealable
- Unshielded
- Contact base material: Copper alloy
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | knurled screw | |
| Grid | 2.16 mm | |
| Pole image | standard | |
| Contact connection | IDC connection | |
| Version | socket header | |
| Pin number | 50 pole | |
| Additional parts | equipped | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
