1761028-5 | AMP

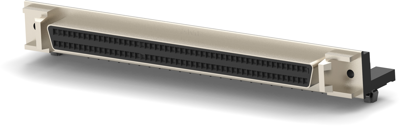

D-Sub socket, 100 pole, standard, equipped, angled, solder pin, 1761028-5
Unit Price (€ / pc.)
27.6675 € *
Available in 5 Days: 1,992 pcs. - if ordered today
Total Price:
332.01 € *
Price list
Quantity
Price per unit*
12 pcs.
27.6675 €
18 pcs.
27.1558 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 1761028-5, AMP
PCB D-Sub Connector, Receptacle, Cable-to-Board, 100 Position, 1.27 mm Centerline, 2 Row, Standard profile.
Features
- Shielded
- Shell plating material: Tin
- Contact base material: Phosphor-Bronze
- Shell material: Steel
Applications
- For signal applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 100 pole | |
| Type of locking | latch locking | |
| Contact connection | solder pin | |
| Attachment (rear panel) | through hole | |
| Grid | 1.27 mm | |
| Additional parts | equipped | |
| Pole image | standard | |
| Assembly | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
