1658683-1 | AMP

D-Sub socket, 44 pole, standard, unequipped, straight, crimp connection, 1658683-1

Order No.: 36P8681
EAN: 4099889787030
MPN:
1658683-1
Series: AMPLIMITE

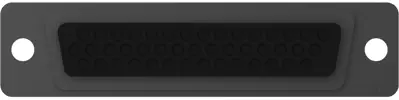

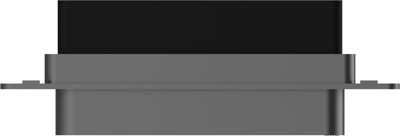

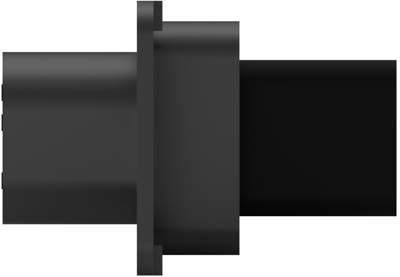

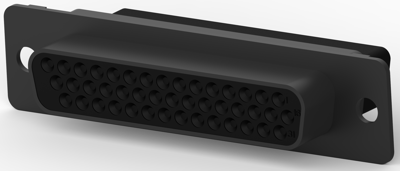

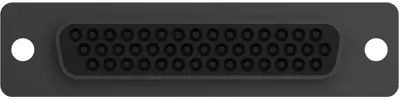

1658683-1 AMP D-Sub Connectors Image 1

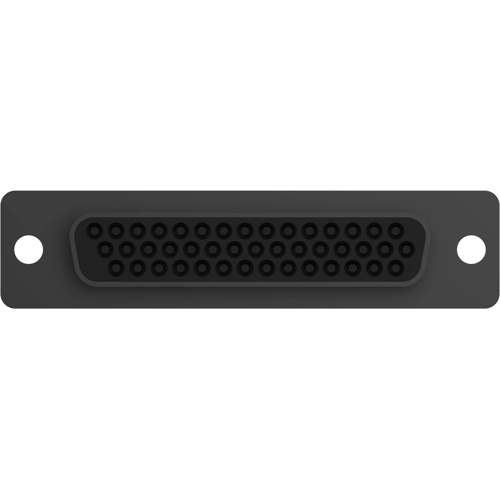

1658683-1 AMP D-Sub Connectors Image 2

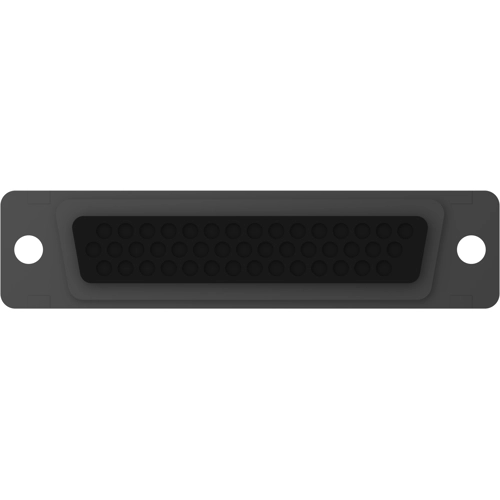

1658683-1 AMP D-Sub Connectors Image 3
1658683-1 AMP D-Sub Connectors Image 4

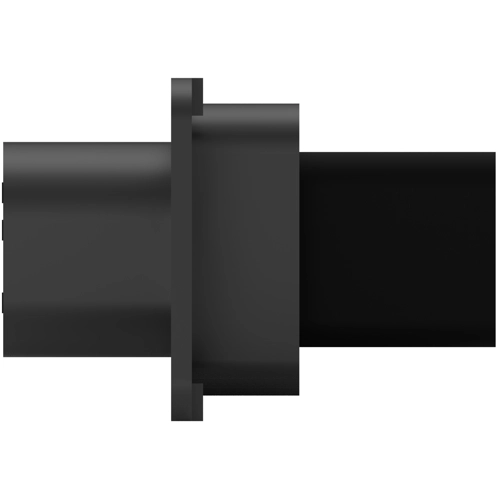

1658683-1 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
6.9020 € *
Available: 72 pcs.
Available in 5 Days: 12,940 pcs.
Leadtime: 11 Weeks **
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9020 €
10 pcs.
6.3427 €
50 pcs.
5.7715 €
100 pcs.
5.2003 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket Header, 1658683-1, AMP

Shell Type: Full Metal Shell, Connector and Housing Type: Receptacle, Connector System: Cable-to-Cable, D-Sub Shell Size: 3, Sealable: No, Number of Positions: 44, Shell Material: Steel, D-Sub Contact Size: 22, Mating Retention: With, Mating Retention Type: Mounting Holes, Housing Color: Black, Centerline (Pitch): 2.28 mm, Operating Temperature Range: -55 to 105 °C, Shielded: Yes, Circuit Application: Signal, UL Flammability Rating: UL 94V-0.

Technical Data

  • Assembly: Cable connection
  • Pin number: 44-pole
  • Pole image: Standard
Technical specifications
Type of locking through hole
Pole image standard
Assembly straight
Grid 2.28 mm
Contact connection crimp connection
Pin number 44 pole
Version socket header
Additional parts unequipped
Logistics
Country of origin IT
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
