1658671-1 | AMP

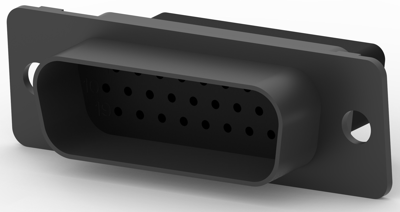

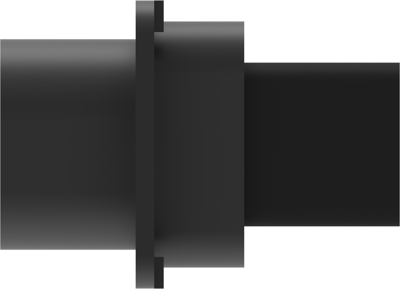

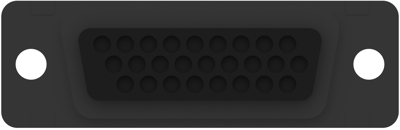

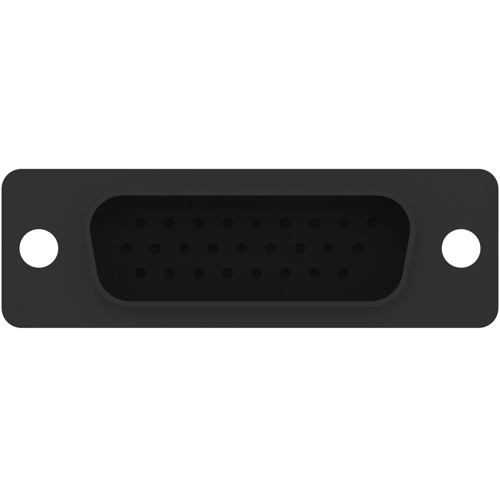

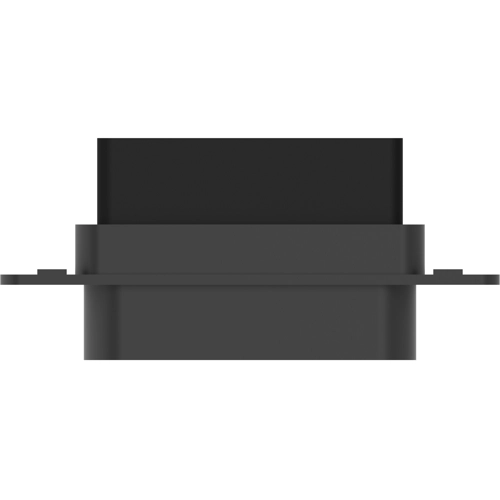

D-Sub plug, 26 pole, high density, unequipped, straight, crimp connection, 1658671-1
Unit Price (€ / pc.)
4.0460 € *
Available: 12 pcs.
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.7604 €
25 pcs.
3.5105 €
50 pcs.
3.1892 €
*incl. VAT plus shipping costs
Subject to prior sale
High-density Sub-D connector series HDP 22, bare, type TE Connectivity/AMP 0-0748../0-1658.
For applications requiring maximum contact density. Electrical and mechanical properties to MiL-C-24308; Insulator: glass fiber-reinforced polyamide GV, black, self-extinguishing to UL 94-0. Continuous current, depending upon the conductor cross-section (0.032 to 0.41 mm²): 1.5 to 5.0 A. Corresponding male or female contacts are described below (available on separate order).
For male contacts, type 0-0748../0-1658.
Technical attributes (type, number of poles, dimensions): 0-1658671-1, 26-pole, A 39.1, B 33.3, C 12.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.28 mm | |
| Contact connection | crimp connection | |
| Attachment (rear panel) | through hole | |
| Pole image | high density | |
| Assembly | straight | |
| Type of locking | through hole | |
| Pin number | 26 pole | |
| Additional parts | unequipped | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
