1658642-1 | AMP

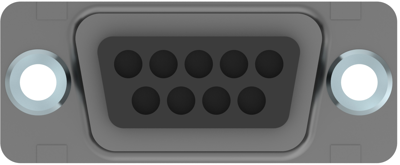

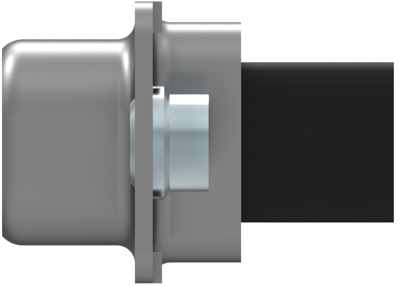

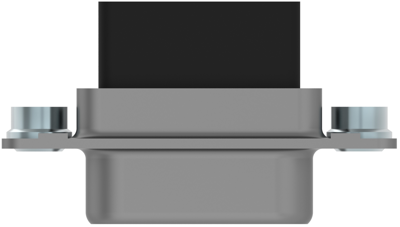

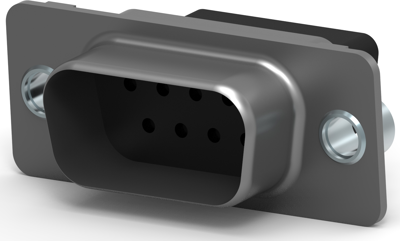

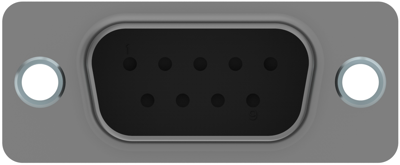

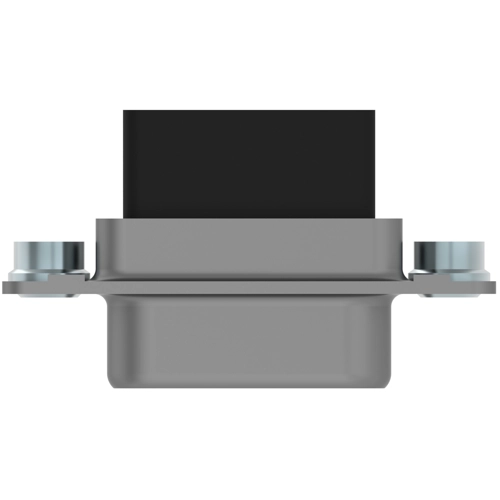

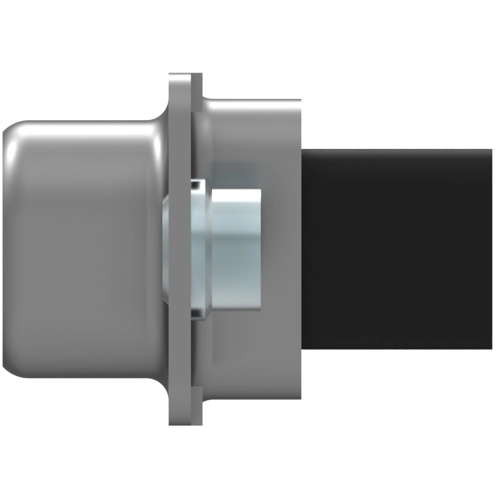

D-Sub plug, 9 pole, standard, unequipped, straight, crimp connection, 1658642-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.3185 € *
Available in 12 Days: 277 pcs. - if ordered today
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
5 pcs.
6.9377 €
10 pcs.
6.4855 €
25 pcs.
5.9143 €
*incl. VAT plus shipping costs
Subject to prior sale
Male Header, 1658642-1, AMP
Shell Type: Full Metal Shell, Connector and Housing Type: Plug, Connector System: Cable-to-Cable, D-Sub Shell Size: 1, Sealable: No, Number of Positions: 9, Shell Material: Steel, D-Sub Contact Size: 20, Mating Retention: With, Mating Retention Type: Clinch Nut, 4-40 UNC, Centerline (Pitch): 2.74 mm, Operating Temperature Range: -55 to 105 °C, Shielded: Yes, Circuit Application: Signal, UL Flammability Rating: UL 94V-0., Comment: Clinch Nut: 4-40 threads with self-locking feature, Plugs accept size 20 DF pin contacts.
Technical Data
- Assembly: Cable connection
- Pin number: 9-pole
- Pole image: Standard
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| Version | pin header | |
| Contact connection | crimp connection | |
| Grid | 2.74 mm | |
| Pole image | standard | |
| Additional parts | unequipped | |
| Assembly | straight | |
| Type of locking | threaded insert 4-40 UNC | |
| Attachment (rear panel) | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
