1658607-1 | AMP

D-Sub plug, 50 pole, standard, equipped, straight, IDC connection, 1658607-1

Order No.: 55F5538
EAN: 4099889807318
MPN:
1658607-1
0-1658607-1
Series: AMPLIMITE

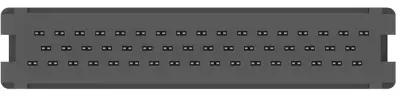

1658607-1 AMP D-Sub Connectors Image 1

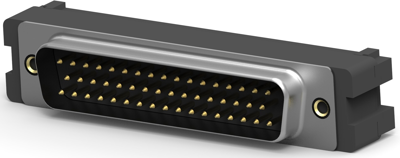

1658607-1 AMP D-Sub Connectors Image 2

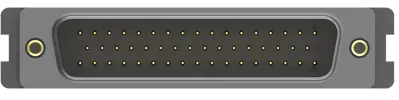

1658607-1 AMP D-Sub Connectors Image 3

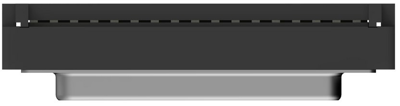

1658607-1 AMP D-Sub Connectors Image 4

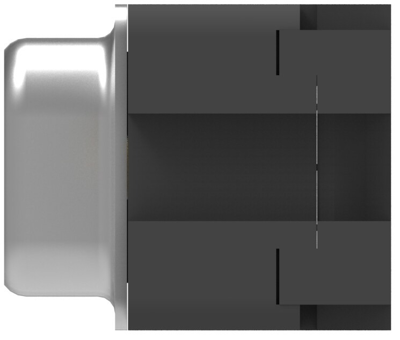

1658607-1 AMP D-Sub Connectors Image 5
Image may differ
Unit Price (€ / pc.)
27.8936 € *
Available: 70 pcs.
Available in 5 Days: 1,443 pcs. - if ordered today
Total Price:
27.89 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8936 €
10 pcs.
26.4894 €
32 pcs.
25.3232 €
*incl. VAT plus shipping costs
Subject to prior sale

Sub-D connector with insulation displacement terminals, type TE Connectivity/AMP HDF 20.

Insulator made of black polyamide, flame retardant to UL 94 V-0; Optional: with or without metal collar and with 3.4 mm flange for retrofitting UNC 4-40 screw locks. Contacts: tin bronze, nickel-plated and selective gold-plated. Grid: 1.27 mm. Cable exit: optional 90 or 180 degrees.

Male connectors with metal collar and UNC 4-40 thread insert, type 0-16586.

Type: 0-1658607-1, for 50-pole cable

Technical specifications
Filter Property Value
Assembly straight
Version pin header
Pole image standard
Type of locking threaded insert 4-40 UNC
Contact connection IDC connection
Pin number 50 pole
Additional parts equipped
Attachment (rear panel) through hole
Grid 2.77 mm
Logistics
Property Value
Country of origin GB
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
